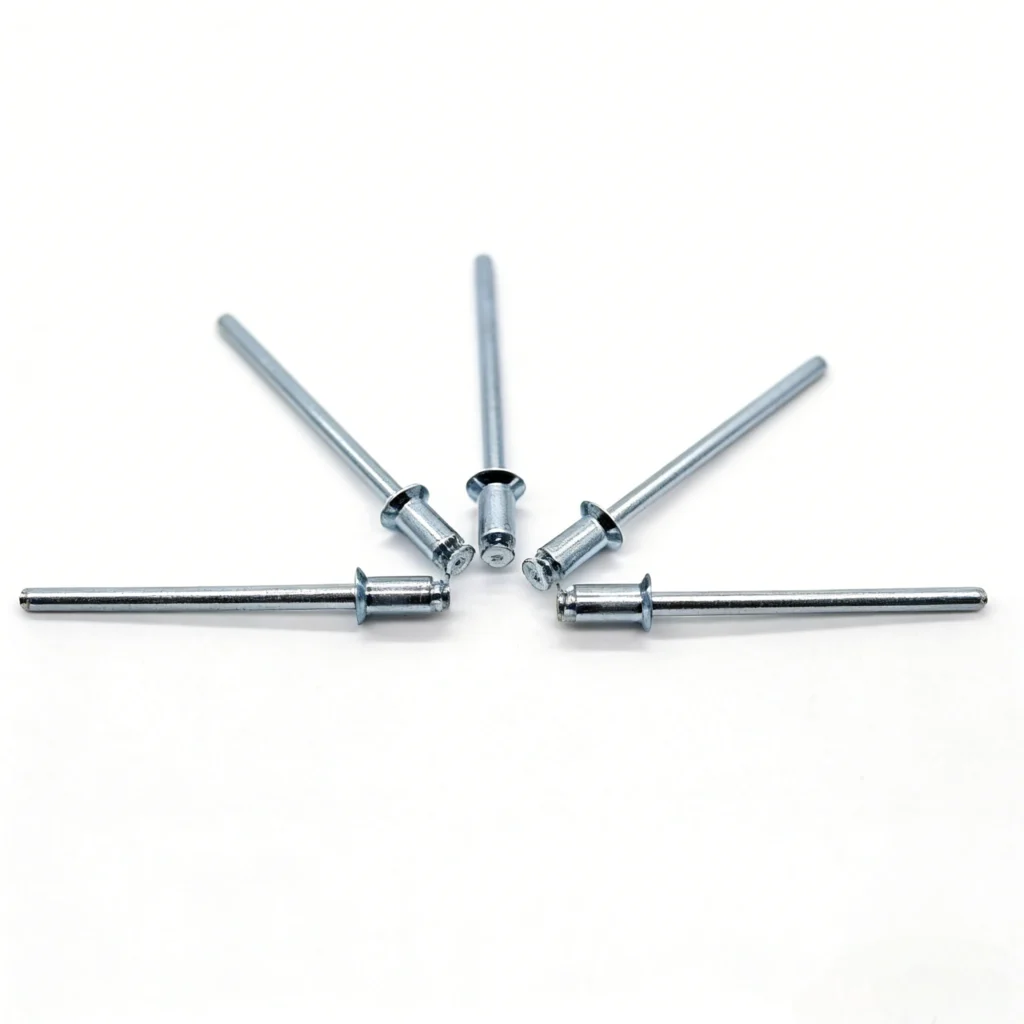

Pull-Thru Blind Rivets
Pull-Thru Blind Rivets (PT Rivets)
Pull-Thru Blind Rivets, also referred to as PT Rivets, are designed for applications where thin, soft, or brittle materials require secure fastening without backside access. RivetFast offers a complete range of Pull-Thru Blind Rivets engineered for consistent expansion, improved load distribution, and reliable performance across industrial applications.
This product belongs to our Blind Rivets range.
What Are Pull-Thru Blind Rivets?
Pull-Thru Blind Rivets are blind fasteners engineered for applications where standard blind rivets may cause deformation or pull-out in thin or soft materials. During installation, the mandrel is pulled entirely through the rivet body, forming a wide bearing area on the blind side to improve retention and minimize material damage.
These rivets are commonly used when backside access is unavailable and where consistent clamp force is required in lightweight assemblies.
Key Advantages of Pull-Thru Blind Rivets
Mandrel pulls completely through the rivet body
Large backside bearing surface for improved load distribution
Reduced risk of sheet distortion or cracking
Suitable for thin, soft, or low-strength materials
Reliable fastening in blind-hole applications
Available Materials, Head Types & Surface Finishes
Pull-Thru Blind Rivets are available in multiple material combinations to suit different performance and corrosion requirements:
Materials
Stainless Steel、Steel
Surface treatment
Zinc Plating、Anodizing
Head Type
Dome Head、Large Flange Head
Customized sizes and colors are available according to customer drawings.
Specifications & Size Options for Pull-Thru Blind Rivets
Pull-Thru Blind Rivets are manufactured in a wide range of diameters and grip ranges to accommodate varying material thicknesses.
Installation Tools & Setting Process for Pull-Thru Blind Rivets
Pull-Thru Blind Rivets can be installed using standard blind rivet tools compatible with pull-through mandrels.
Pneumatic, hydraulic, and battery-powered riveting tools are recommended for high-volume production.
Pull-Thru Blind Rivets vs Large Flange Blind Rivets
Pull-Thru Blind Rivets provide uniform blind-side expansion and a wide bearing area, protecting thin or soft materials.
| Feature | Pull-Thru Blind Rivets | Large Flange Blind Rivets |
|---|---|---|
| Clamping & Hole Fill | Excellent – strong hole filling and tight clamping | Improved surface grip, limited hole fill |
| Pull-Through Resistance | High | High (due to larger head) |
| Shear & Tensile Strength | Moderate | Standard |
| Typical Use Case | Thin sheets, oversized holes, applications needing tight fit | Soft materials, thin sheets, larger holes |
Typical Applications for Pull-Thru Blind Rivets
Pull-Thru Blind Rivets are widely used in applications involving thin or lightweight materials, including:
- Automotive body panels and trim components
- Household appliances and metal enclosures
- HVAC systems and ducting assemblies
- Electrical cabinets and control boxes
- Light-gauge sheet metal fabrication
In applications where additional bearing surface is required on the visible side, Large Flange Open-End Blind Rivets may also be considered as an alternative fastening solution.
Customization, Quality Control & Supply Capability
We offer OEM and ODM services for Pull-Thru Blind Rivets, including customized materials, dimensions, head styles, and packaging.
All products are manufactured under strict quality control systems to ensure consistent sealing performance and reliable quality for global supply.
Why Choose RivetFast for Your Blind Rivets?
ISO 9001 Certified Manufacturing
All RivetFast blind rivets are produced under an ISO 9001 certified quality management system, ensuring consistent processes and reliable product quality.
Consistent Performance Control
Critical dimensions and performance parameters are monitored throughout production to deliver stable setting and repeatable fastening results.
Complete Blind Rivet Portfolio
From standard and multi-grip to closed-end and structural blind rivets, our range supports diverse materials and application requirements.
Own Factory, Direct Control
With in-house manufacturing, RivetFast maintains full control over production, quality, and lead times—supporting stable supply and flexible requirements.
Request a Quote for Pull-Thru Blind Rivets
Contact us with your required size, material, and order quantity—we will reply within 24 hours.
Q1:What does PT Rivets mean?
PT Rivets is an industry abbreviation for Pull-Thru Blind Rivets. It refers to rivets where the mandrel is pulled completely through the rivet body during installation.
Q2:When should I use Pull-Thru Blind Rivets instead of standard blind rivets?
Pull-Thru Blind Rivets are recommended for thin sheet metal or low-strength materials where Standard Blind Rivets may cause deformation or insufficient retention.
Q3:Are Pull-Thru Blind Rivets suitable for blind-hole applications?
Yes. Pull-Thru Blind Rivets are specifically designed for blind-hole installations where access to the backside of the workpiece is not possible.
Q4:Can Pull-Thru Blind Rivets replace Large Flange Blind Rivets?
In some thin material applications, Pull-Thru Blind Rivets can be an alternative to Large Flange Open-End Blind Rivets. The final selection depends on load requirements and material characteristics.
Q5:What installation tools are required for Pull-Thru Blind Rivets?
Standard pneumatic or hydraulic blind riveting tools compatible with pull-through mandrels can be used. Tool selection depends on rivet size and production volume.
This product is part of RivetFast’s Blind Rivets product range and is manufactured to meet industrial fastening requirements.
